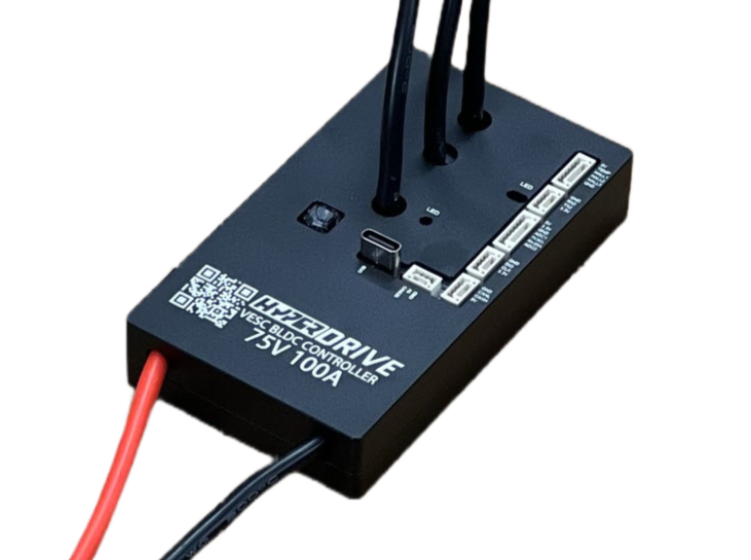

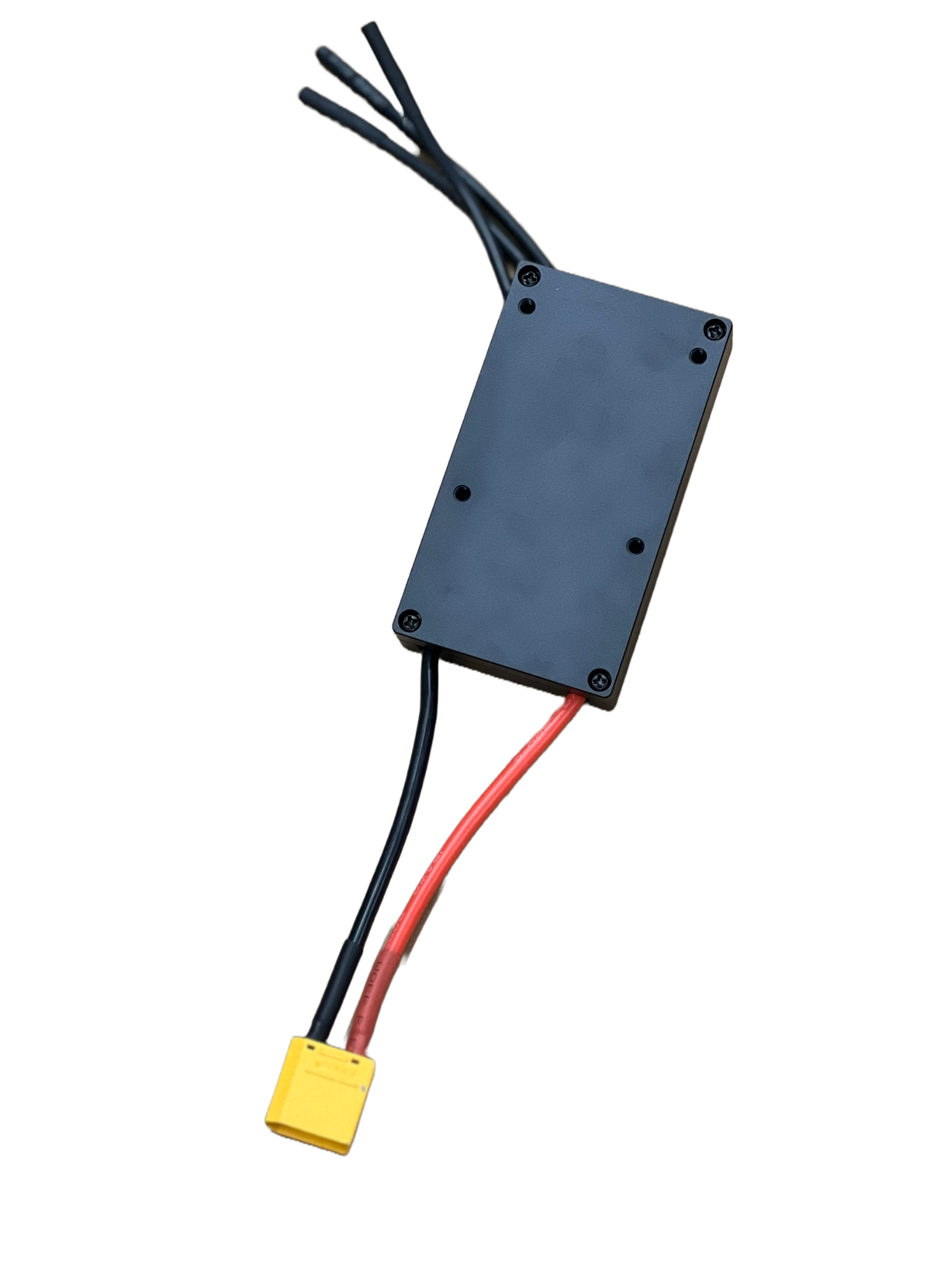

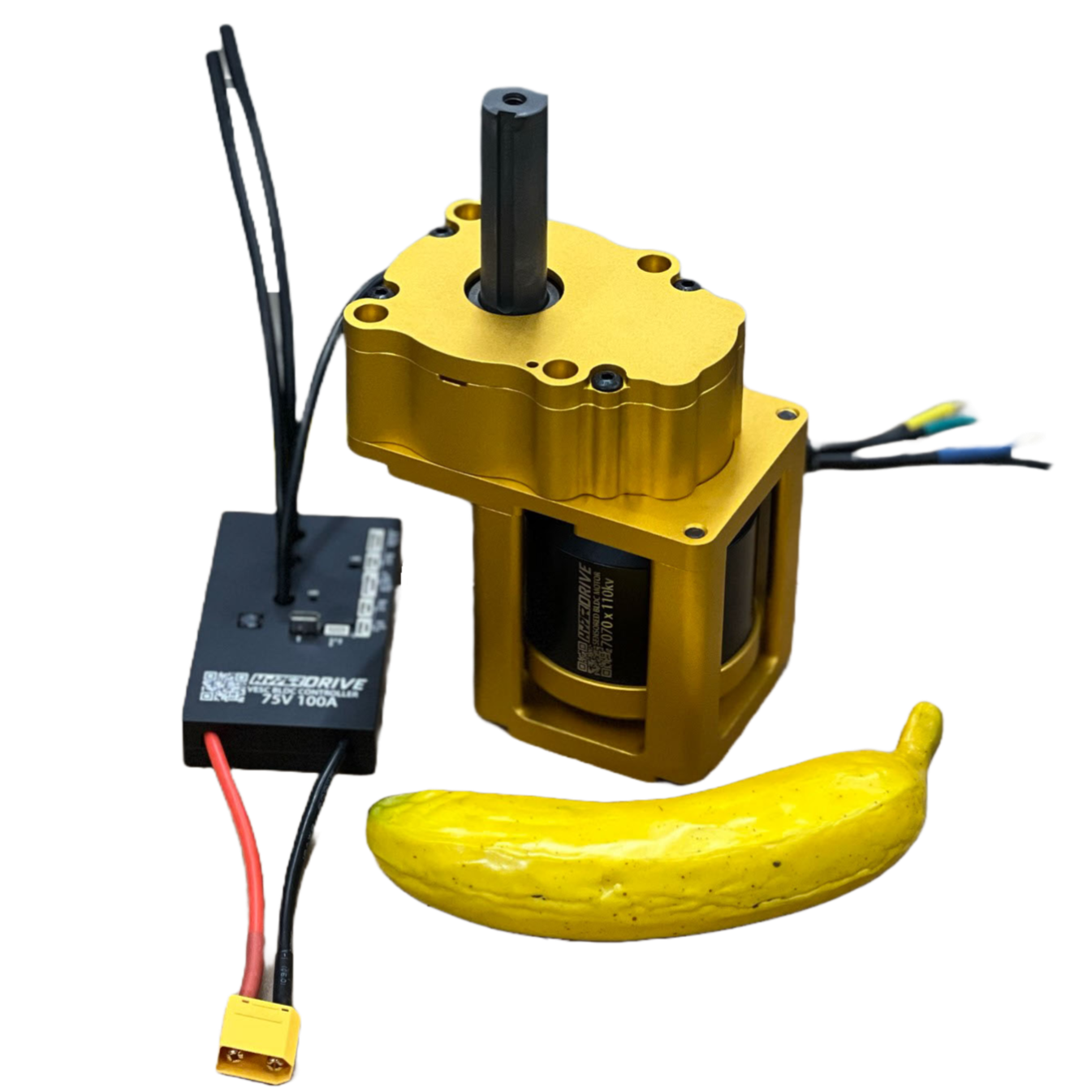

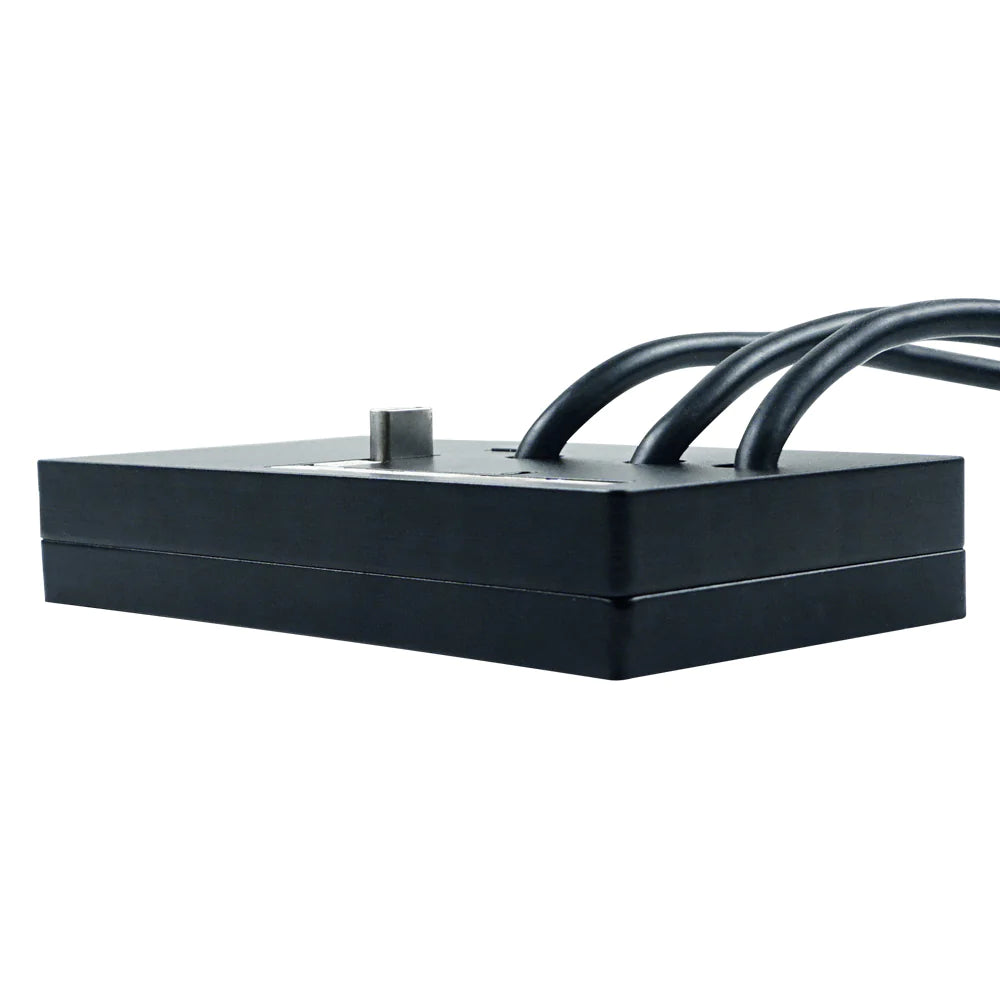

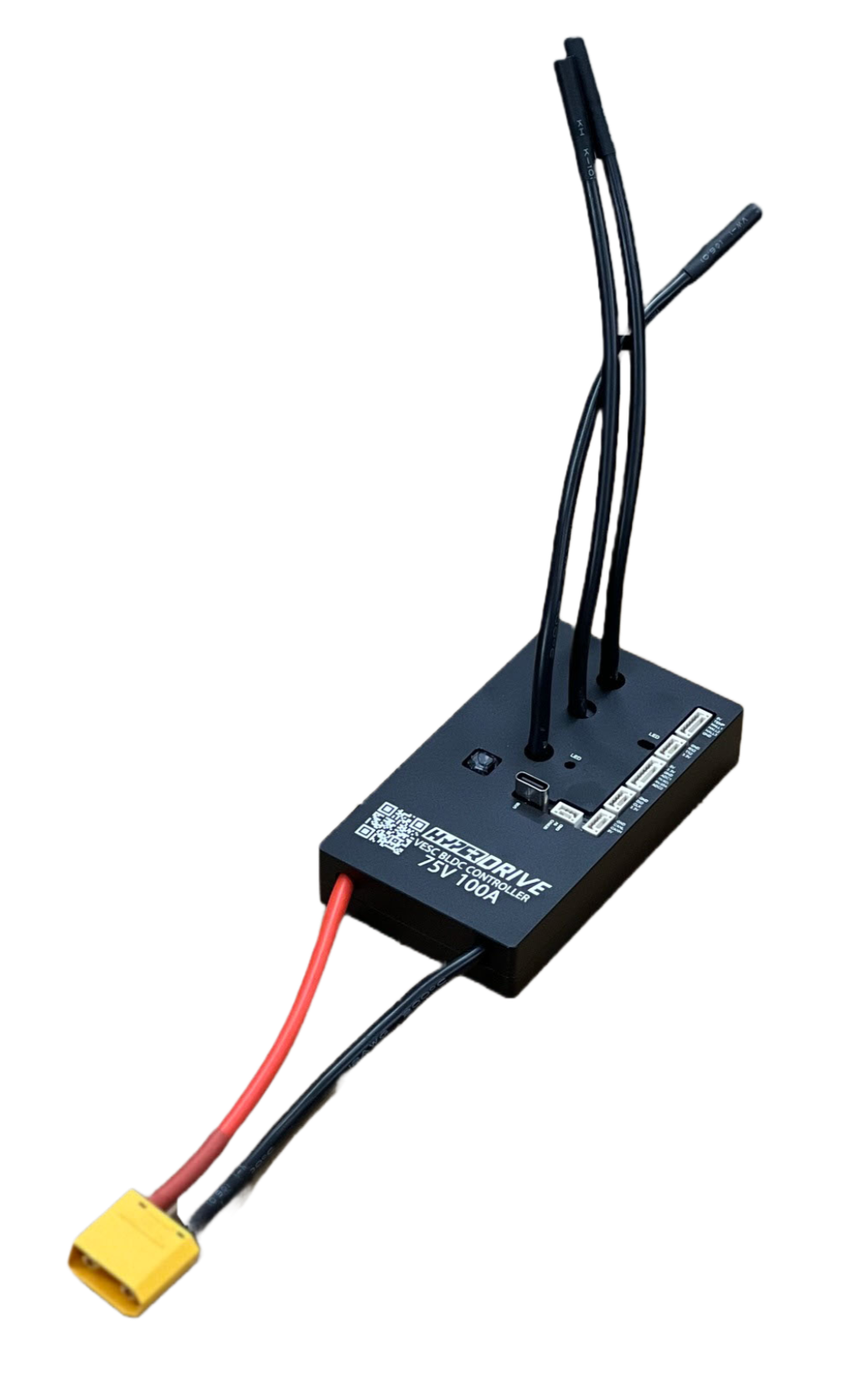

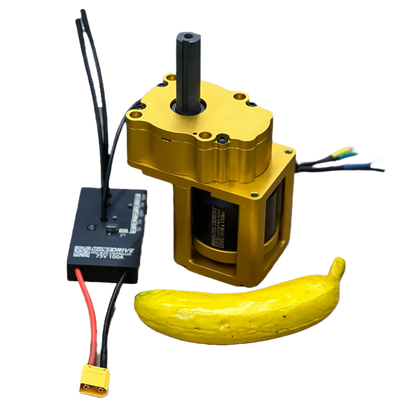

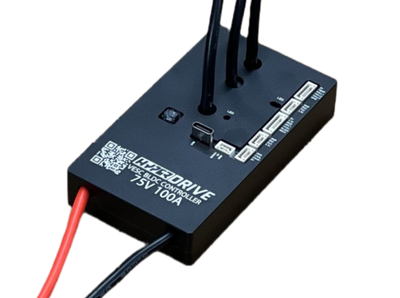

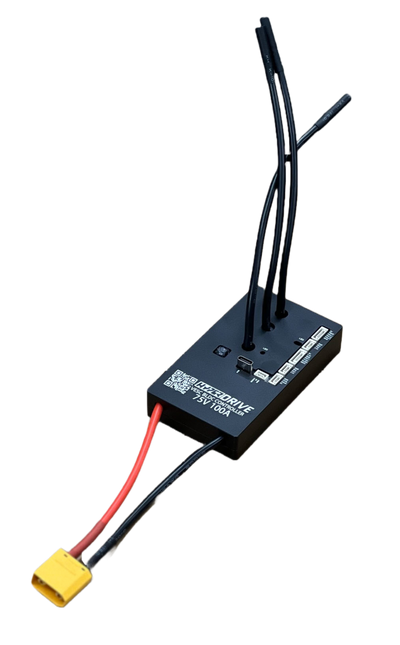

HYPERDRIVE VESC - 75V/100A

Regular price $159

Unit price per

only -48 left in stock

Want the same VESC motor controller from our HYPERDRIVE Motor Modules? Problem solved! With a 75V rating and continuous current capacity of 100A, this VESC is great for powering your drivetrain or weapon. Works with VESC Project's VESC Tool Software!



HYPERDRIVE VESC Specs

Voltage Range (V)

14-84VDC (4-20S LiPo)

Continuous Current (A)

100A

Max Current (A)

120A

BEC

5VDC @ 1.5A

Max ERPM

150,000

USB Communication Type

USB-C

Supported Sensor Types

ABI, Hall, AS5x47, AS5x48

Supported Input Types

PPM, ADC, NRF, UART

Wire Size (AWG)

12 AWG

Size (Length*Width*Height, mm)

103mm x 58mm x 5.9-18.5mm

Mass (g, lbs) 225 grams (0.5 lbs)
Connector Types

4mm Bullets (Phase), XT90 (Power)



WARNING: This VESC does NOT have Phase Filters! Please turn OFF the phase filter function and choose "false" in VESC Tool when using firmware version on or above 5.3 (VESC_TOOL 3.01). Failing to turn off the phase filter will result in VESC damage. DO NOT restore the default parameters when using the wizard interface.
