HYPERDRIVE | Motor + VESC Combo
Don't need the gearbox but want the same motor and controller from our HYPERDRIVE Motor Modules? Problem solved! With a 60V-rated 110kv motor, this combo is great for powering your drivetrain or weapon.

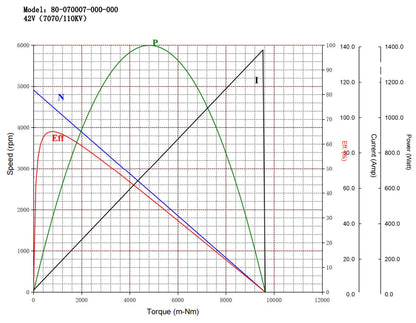

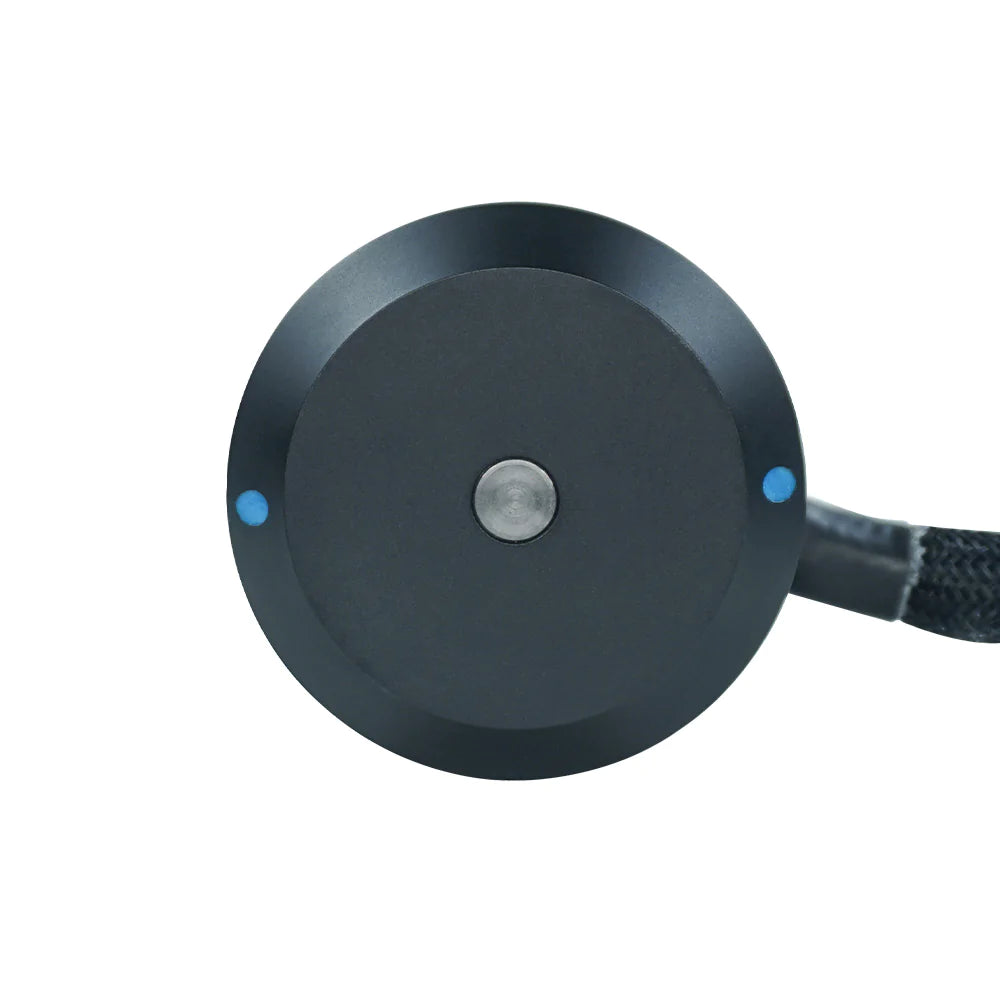

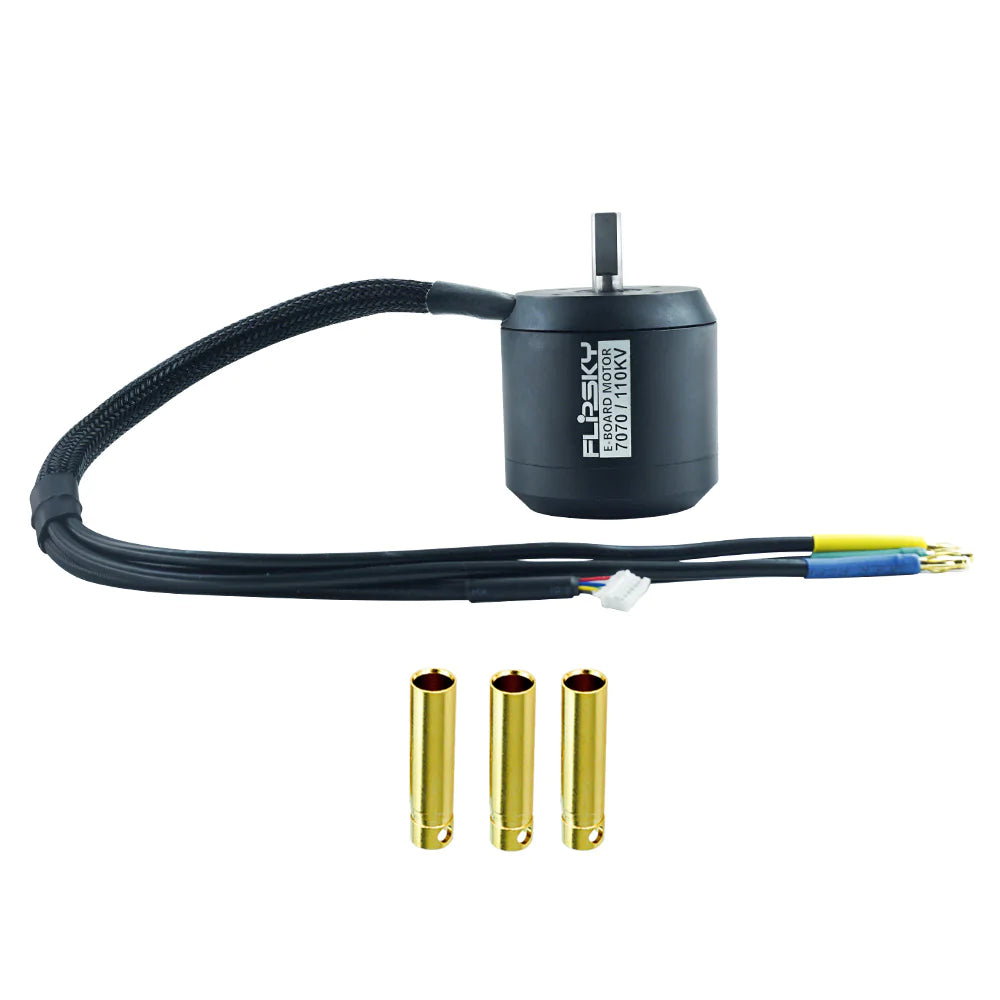

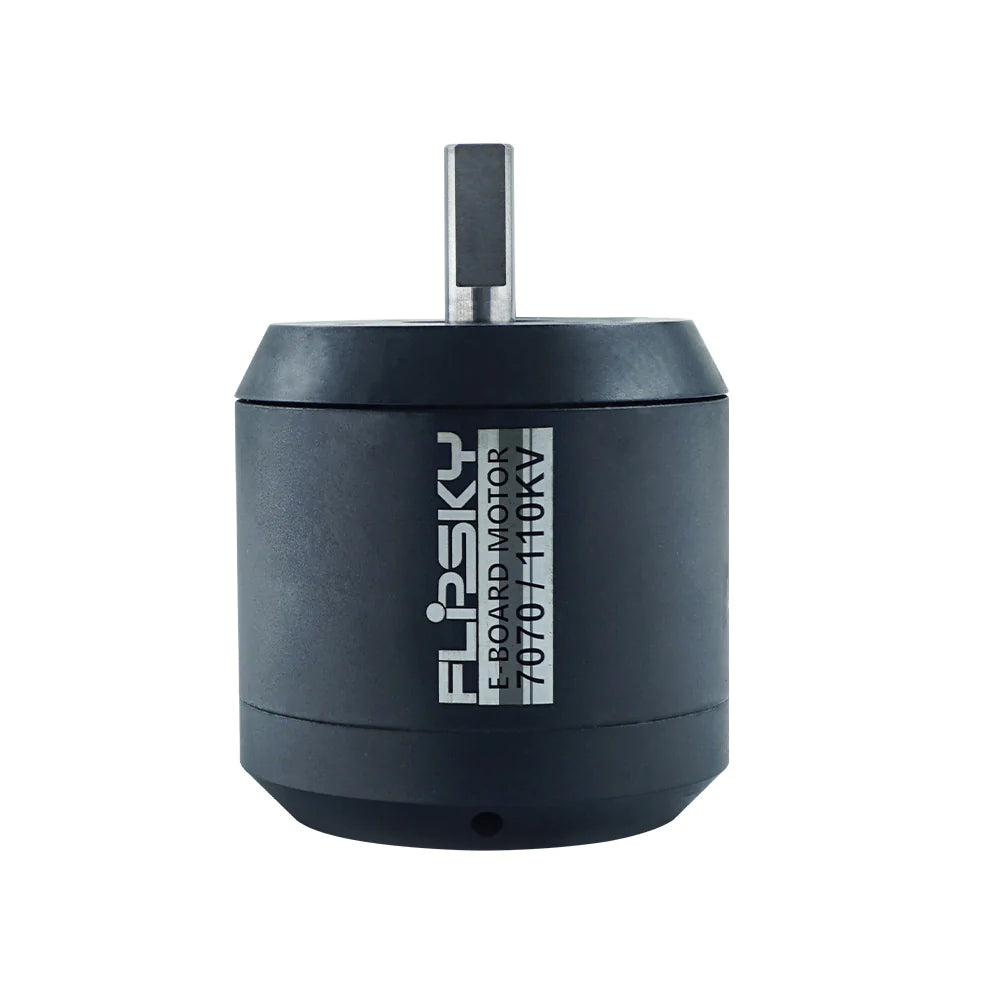

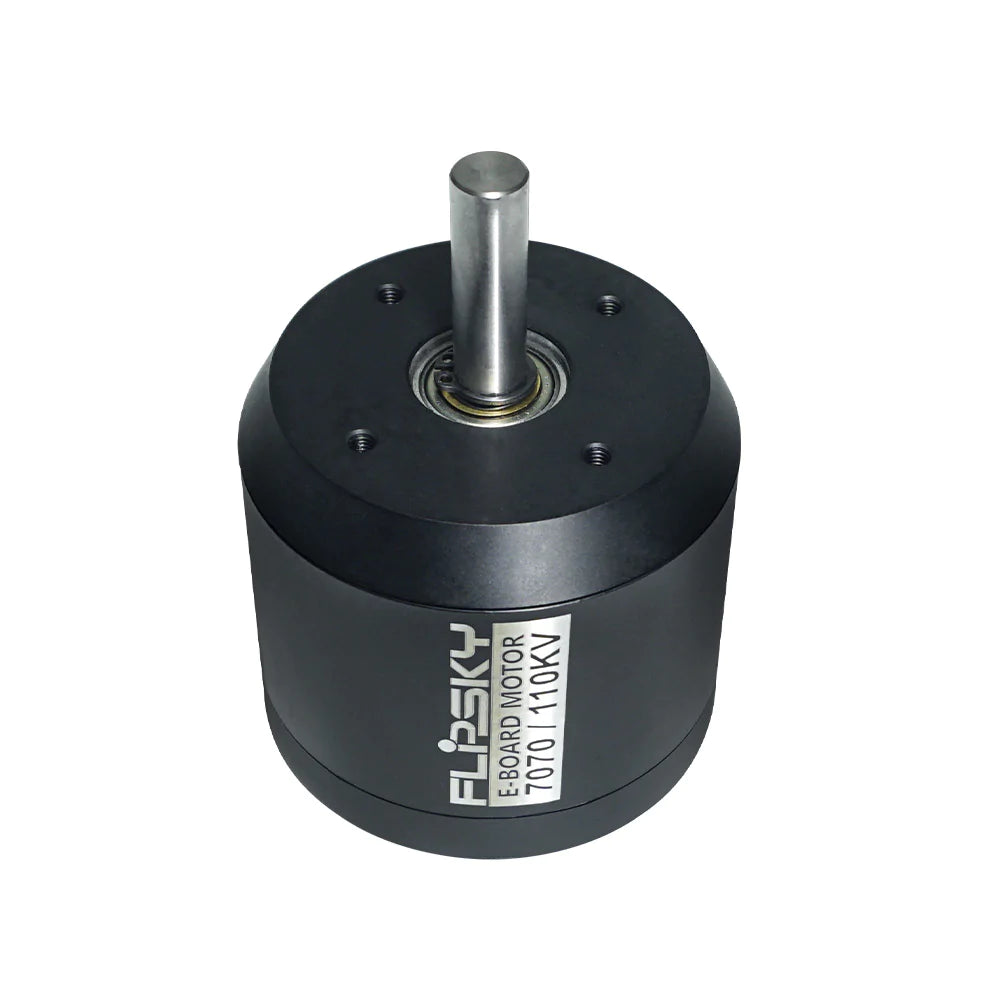

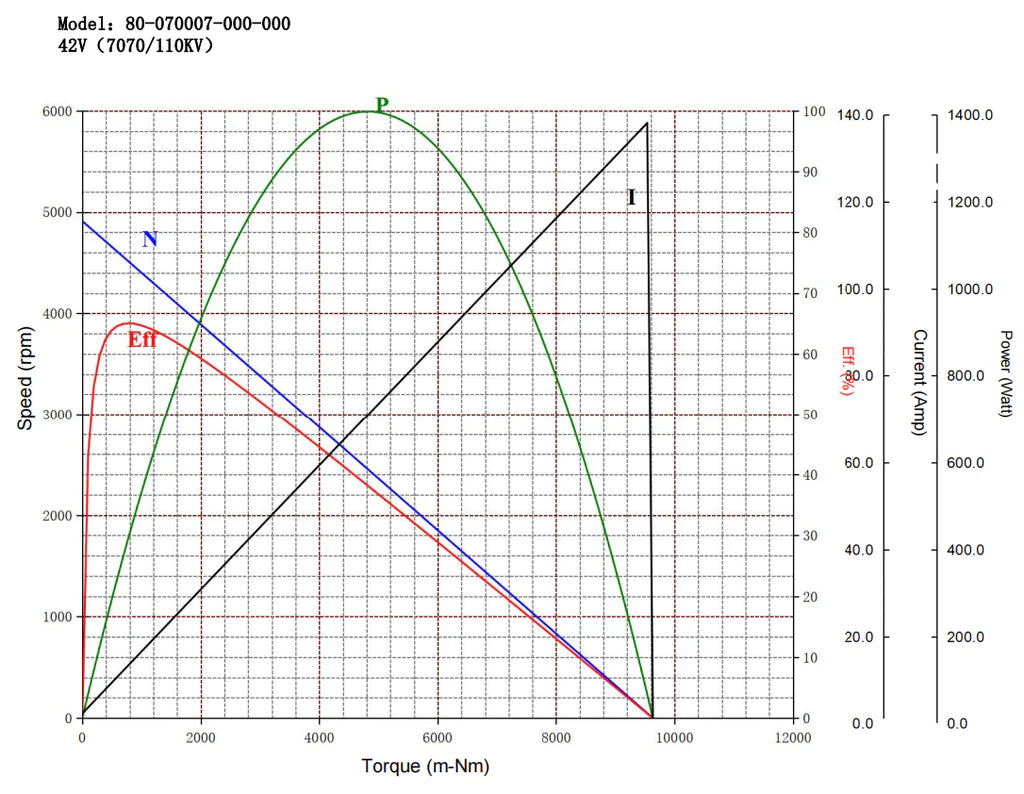

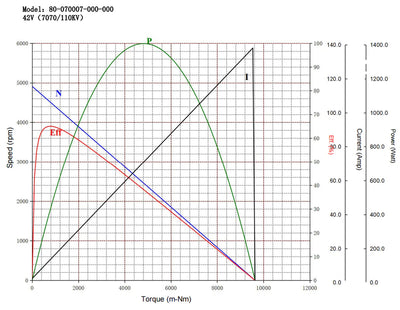

HYPERDRIVE Motor Specs
| RPM/Volt (KV) |
110KV |
| Max Voltage (V) |
75VDC peak (6-18S LiPo) |
| Continuous Current (A) |
70A |
| Max Current (A) |
100A |
| Max Continuous Power (W) |
4200W |
| Torque Constant (KT) |
12.3 oz-in/A (.087 N-m/A) |
| Max Torque (oz-in, N-m) |
1345.3 oz-in (9.5 N-m) |
| Internal Resistance (Ohm) |
0.055Ω (.055mΩ) |
| Motor Structure |
12N/14P |

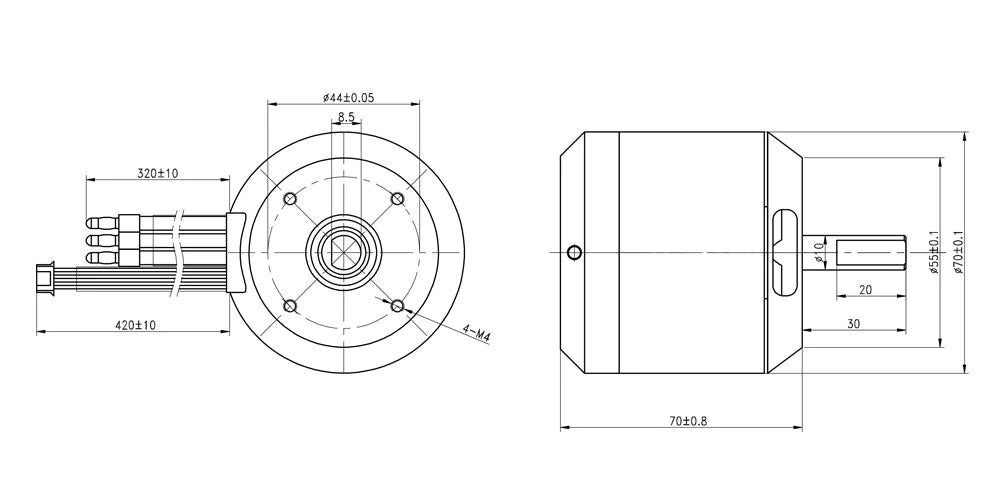

| Motor Dimensions (Diameter x Length, mm) |
70mm OD x 70mm L |
| Shaft Dimensions (Diameter x Length, mm) |
10mm OD x 30mm L, D-Shaft |
| Mass (g, lbs) | 1,008 grams (2.22 lbs) |
| Bullet Connector Size |
4mm |
| Sensors |
Yes, Hall Effect + Thermistor |

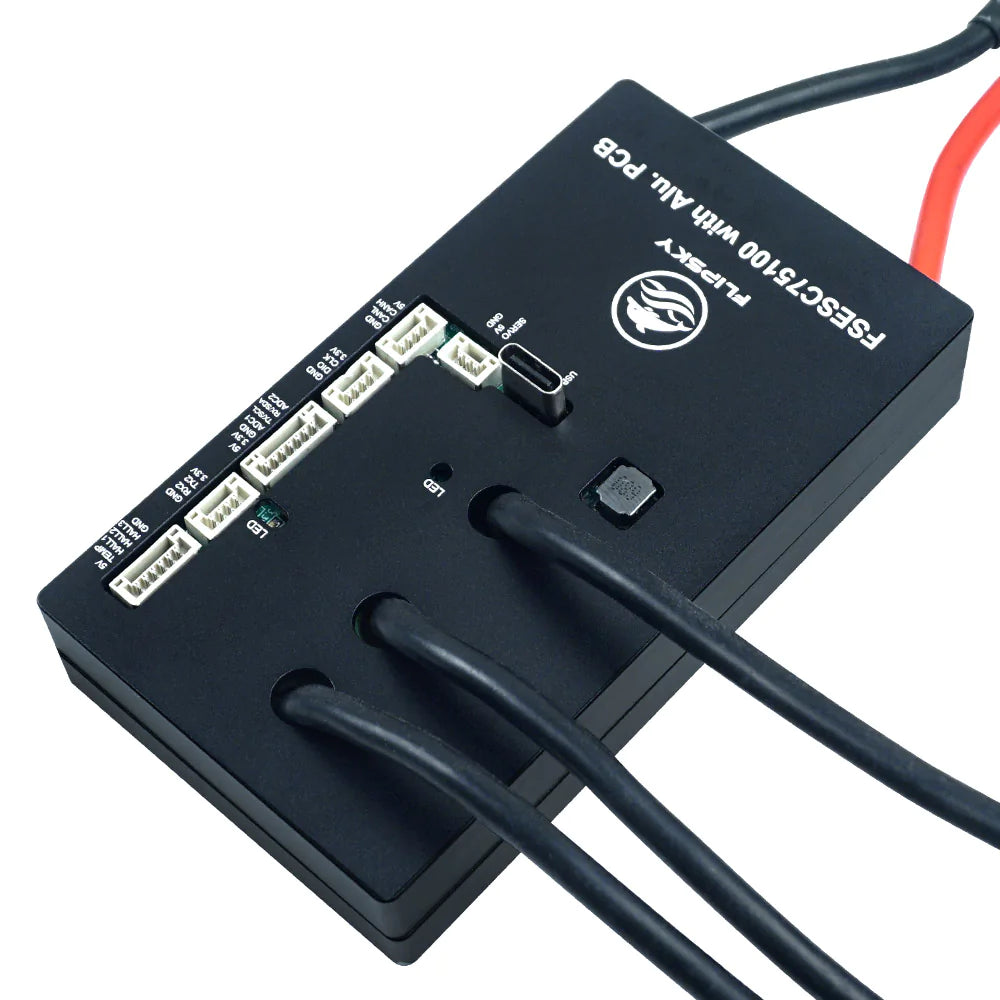

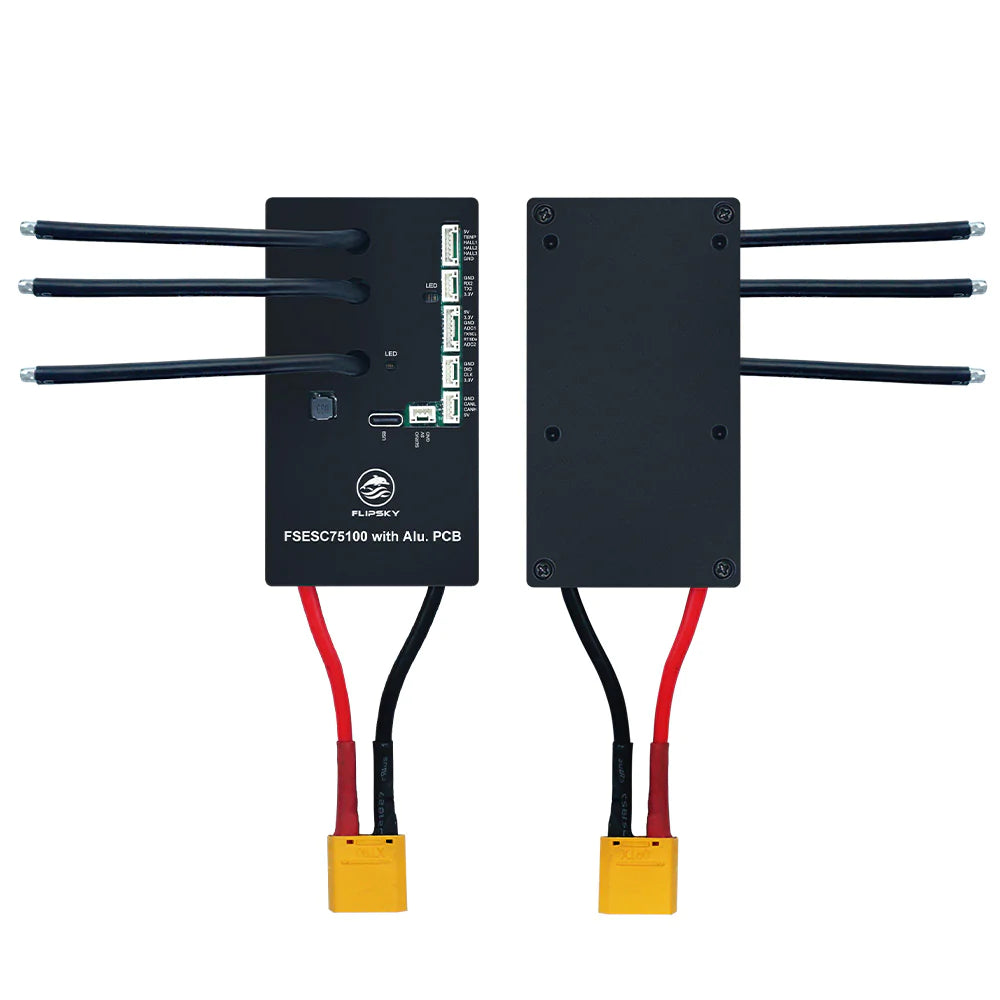

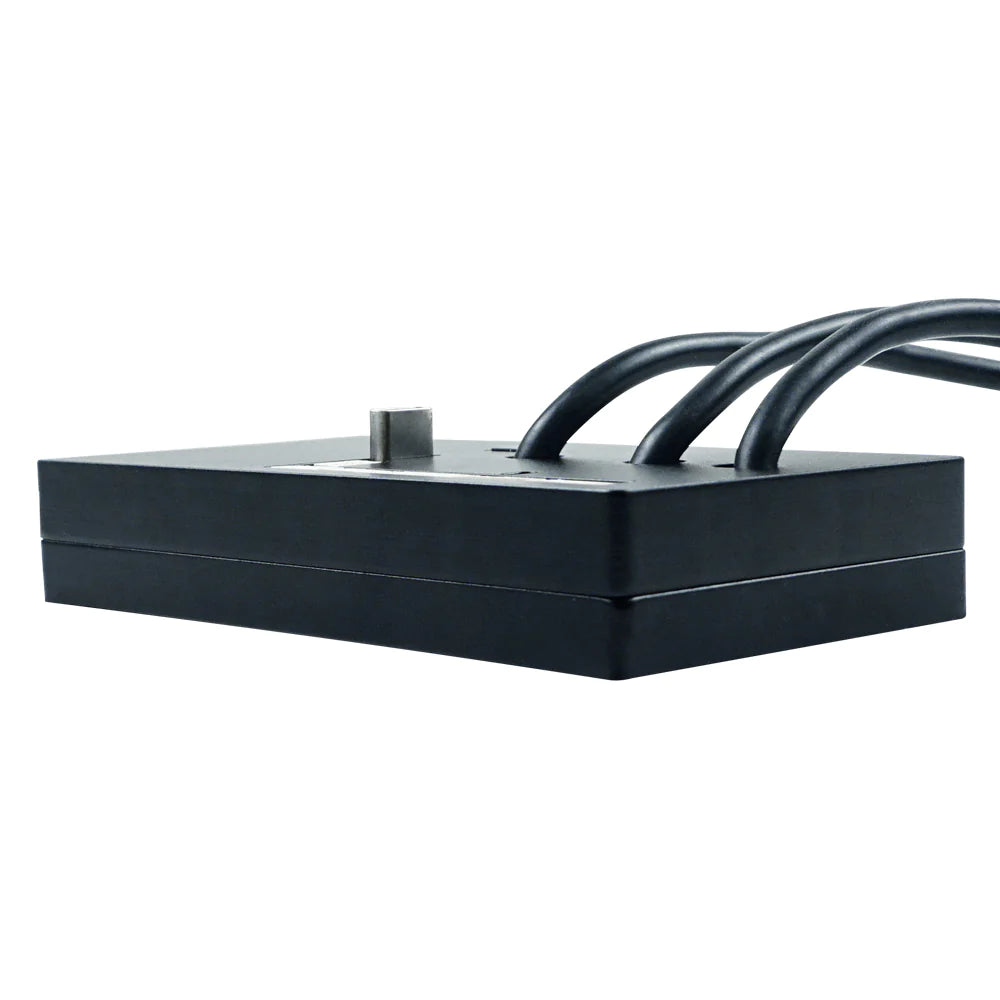

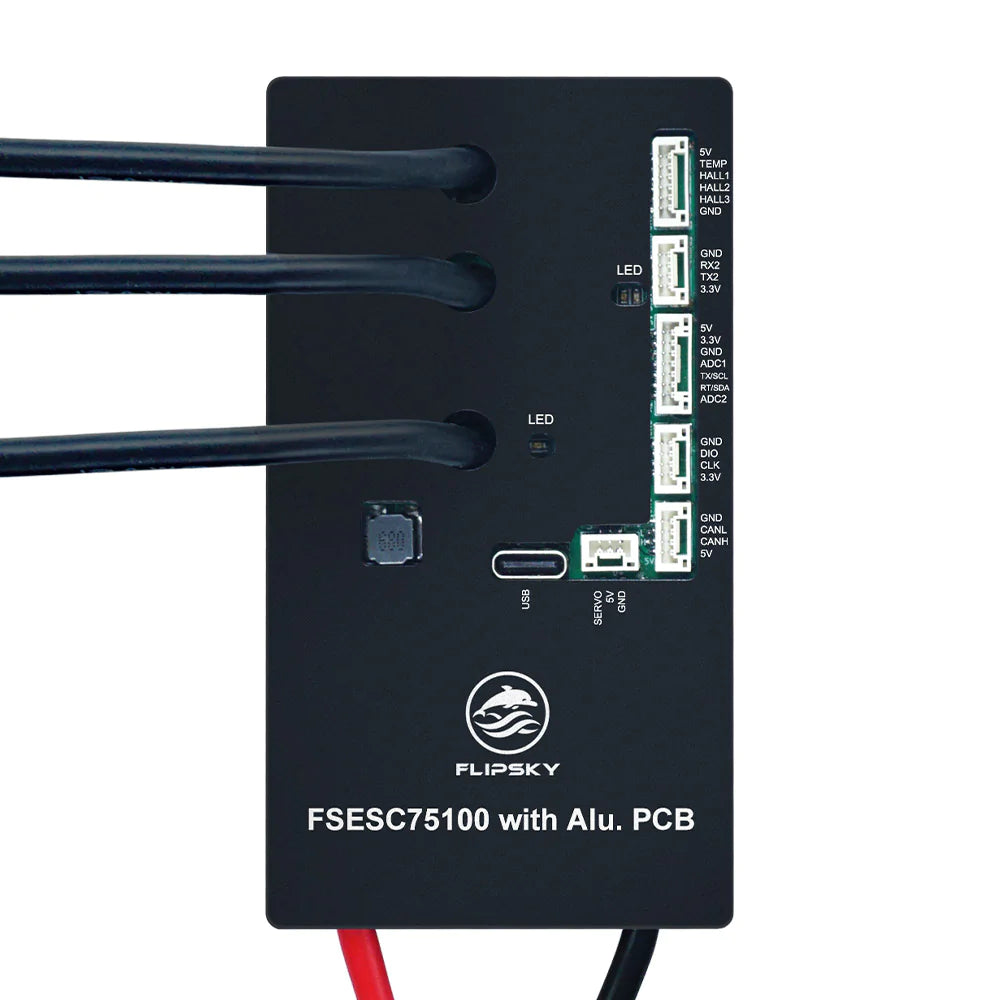

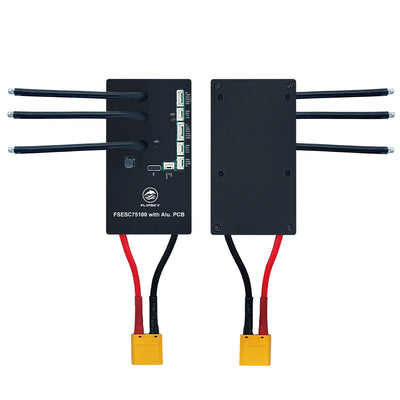

HYPERDRIVE VESC Specs
| Voltage Range (V) |
14-84VDC (4-20S LiPo) |
| Continuous Current (A) |
100A |
| Max Current (A) |
120A |
|
BEC |
5VDC @ 1.5A |
| Max ERPM |
150,000 |
| USB Communication Type |
USB-C |
| Supported Sensor Types |
ABI, Hall, AS5x47, AS5x48 |
| Supported Input Types |
PPM, ADC, NRF, UART |
| Wire Size (AWG) |
12 AWG |

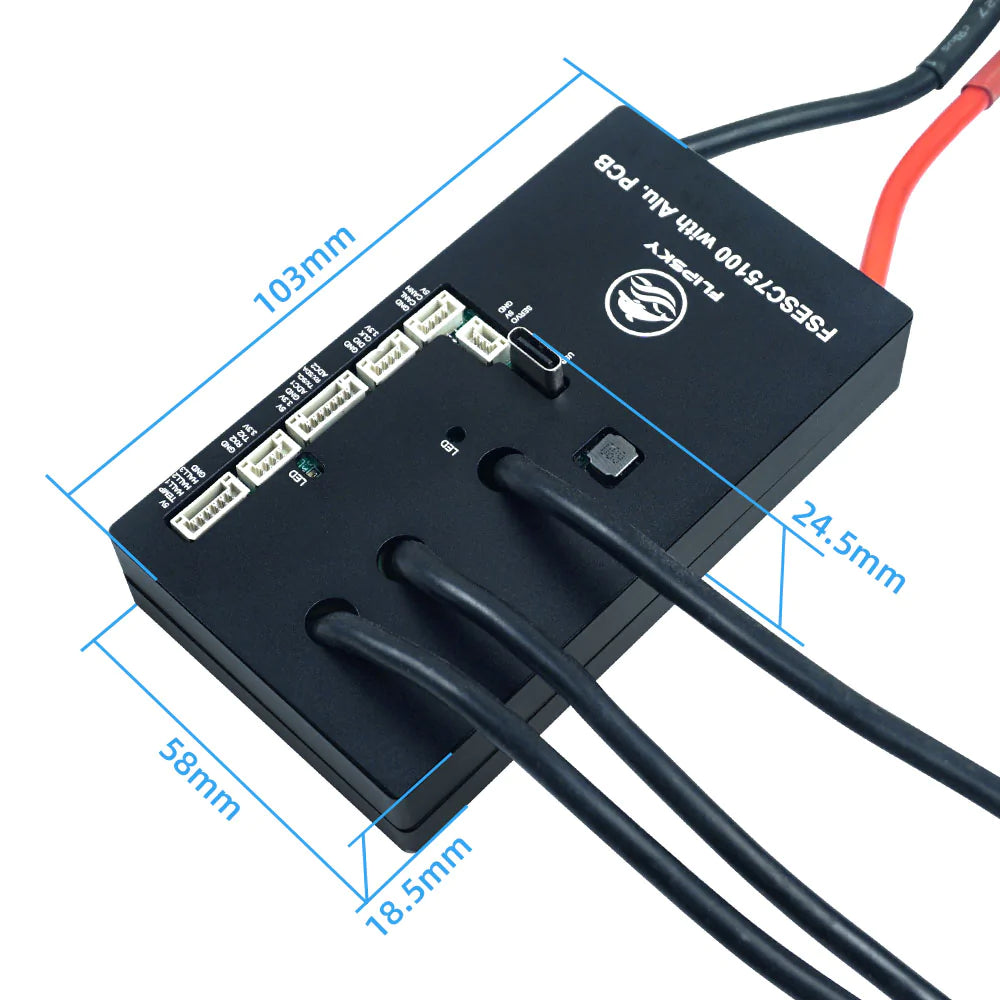

| Size (Length*Width*Height, mm) |
103mm x 58mm x 5.9-18.5mm |
| Mass (g, lbs) | 225 grams (0.5 lbs) |
| Connector Types |
4mm Bullets (Phase), XT90 (Power) |
WARNING: This VESC does NOT have Phase Filters! Please turn OFF the phase filter function and choose "false" in VESC Tool when using firmware version on or above 5.3 (VESC_TOOL 3.01). Failing to turn off the phase filter will result in VESC damage. DO NOT restore the default parameters when using the wizard interface.
