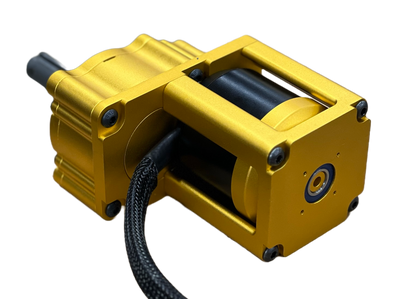

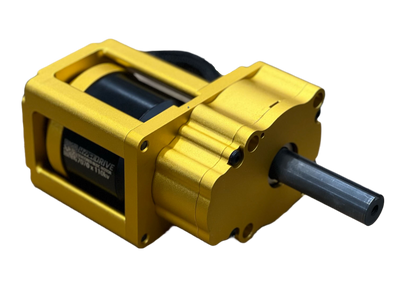

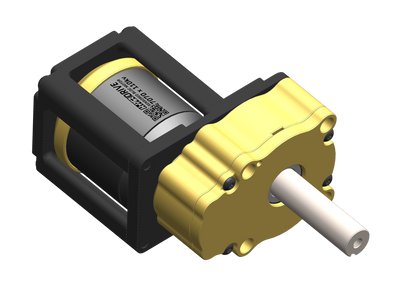

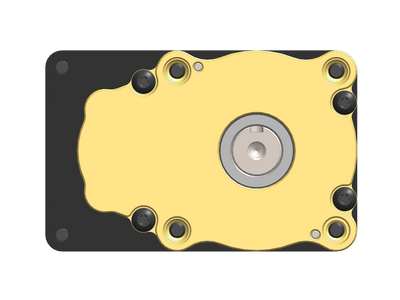

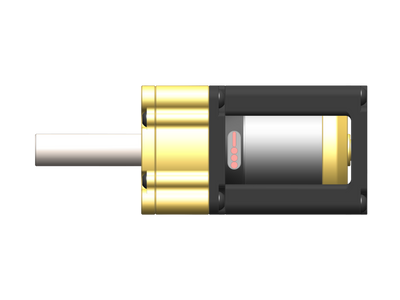

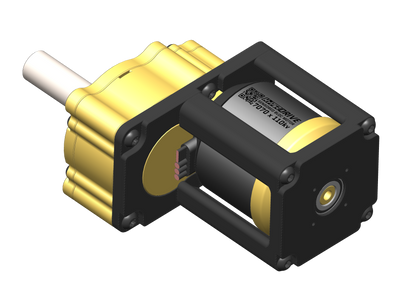

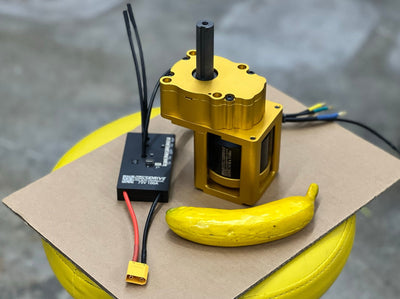

HYPERDRIVE | Module

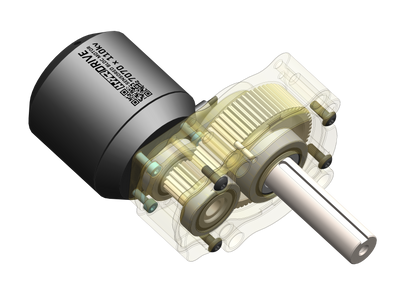

Introducing the all-new HYPERDRIVE Module, the ultimate plug-n-play brushless gearmotor solution! This compact and powerful motor + VESC combo is paired with a custom gearbox and 3/4" hardened 4130 steel output shaft, making it perfect for drivetrain or weapon applications. And the best part? It comes fully assembled, wired, and programmed, so all you have to do is add power and a PPM signal and you're ready to go! Choose between High Torque (3.67:1) or High Speed (1:1) gearing options to match your specific design needs. Don't miss out on the most advanced OTS motor solution on the market - Pick your gearing to best match your design!
HYPERDRIVE Module Specs
| Gear Ratio |
3.67:1 (18T:66T), 1:1 (42T:42T) |
| Gearbox Material | 6061-T6 Aluminum, Gold Anodized |
| Gear & Output Shaft Materials | 4130 Chromoly Steel, Hardened 40HRC |
| Dimensions w/o Rear Motor Support Kit (L x W x H, in) |
4.513" x 4.688" x 3" |

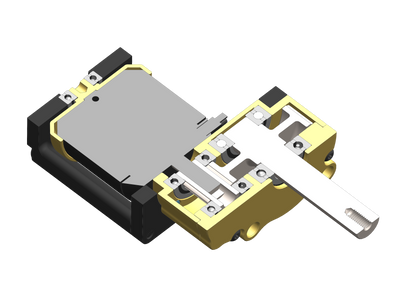

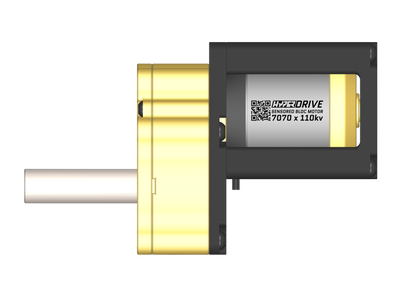

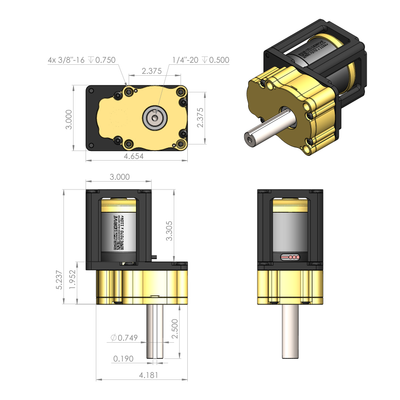

| Dimensions w Rear Motor Support Kit (L x W x H, in) | 4.654" x 5.237" x 3" |
| Shaft Dimensions (Diameter x Length, in) |
3/4" OD x 2.5" L, 3/16" Keyway |
| Mass w/o Rear Motor Support Kit (g, lbs) | 2,163 grams (4.77 lbs) |
| Mass w/ Rear Motor Support Kit (g, lbs) | 2,915 grams (6.43 lbs) |
| Recommended Voltage (VDC) | 16S Lipo (59.2V Nom, 67.2V Peak) |

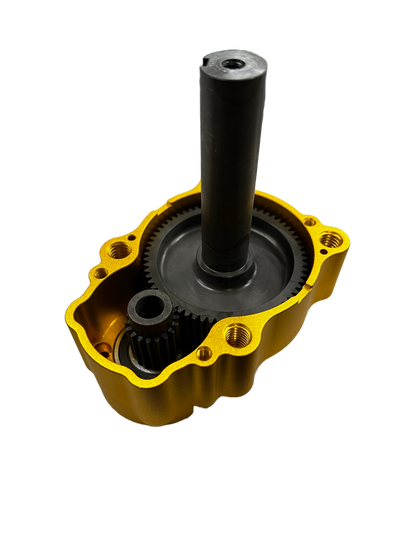

HYPERDRIVE Gearbox Specs
| Gear Ratio |
3.67:1 (18T:66T), 1:1 (42T:42T) |
| Gearbox Material | 6061-T6 Aluminum, Gold Anodized |
| Gear & Output Shaft Materials | 4130 Chromoly Steel, Hardened 40HRC |
| Input Pinion Shaft Requirements (mm) | 10mm OD x 30mm L, D-Shaft |
| Dimensions (Length x Width x Height, in) |
4.181" x 1.952" x 3" |
| Shaft Dimensions (Diameter x Length, in) |
3/4" OD x 2.5" L, 3/16" Keyway |
| Mass (g, lbs) | 1,148 grams (2.53 lbs) |
HYPERDRIVE Motor Specs
| RPM/Volt (KV) |
110KV |
| Max Voltage (V) |
75VDC peak (6-18S LiPo) |
| Continuous Current (A) |
70A |
| Max Current (A) |
100A |
| Max Continuous Power (W) |
4200W |
| Torque Constant (KT) |
12.3 oz-in/A (.087 N-m/A) |
| Max Torque (oz-in, N-m) |
1345.3 oz-in (9.5 N-m) |
| Internal Resistance (Ohm) |
0.055Ω (.055mΩ) |
| Motor Structure |
12N/14P |
| Motor Dimensions (Diameter x Length, mm) |
70mm OD x 70mm L |
| Shaft Dimensions (Diameter x Length, mm) |
10mm OD x 30mm L, D-Shaft |
| Mass (g, lbs) | 1,008 grams (2.22 lbs) |
| Bullet Connector Size |
4mm |
| Sensors |
Yes, Hall Effect + Thermistor |

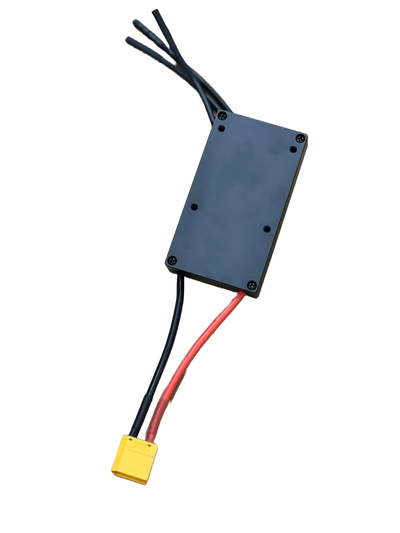

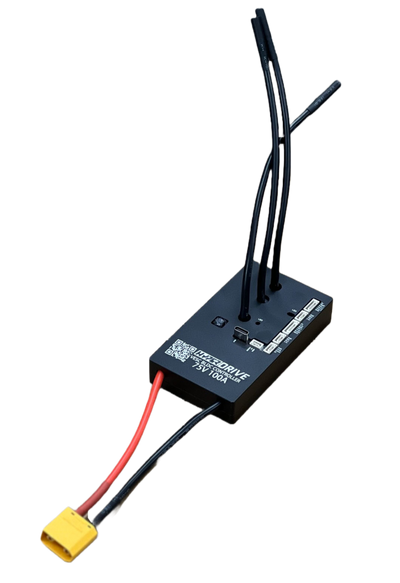

HYPERDRIVE VESC Specs
| Voltage Range (V) |
14-84VDC (4-20S LiPo) |
| Continuous Current (A) |
100A |
| Max Current (A) |
120A |
| BEC |
5VDC @ 1.5A |
| Max ERPM |
150,000 |
| USB Communication Type |
USB-C |
| Supported Sensor Types |
ABI, Hall, AS5x47, AS5x48 |
| Supported Input Types |
PPM, ADC, NRF, UART |
| Wire Size (AWG) |
12 AWG |
| Size (Length x Width x Height, mm) |
103mm x 58mm x 5.9-18.5mm |
| Mass (g, lbs) | 225 grams (0.5 lbs) |
| Connector Types |
4mm Bullets (Phase), XT90 (Power) |
WARNING: This VESC does NOT have Phase Filters! Please turn OFF the phase filter function and choose "false" in VESC Tool when using firmware version on or above 5.3 (VESC_TOOL 3.01). Failing to turn off the phase filter will result in VESC damage. DO NOT restore the default parameters when using the wizard interface.
