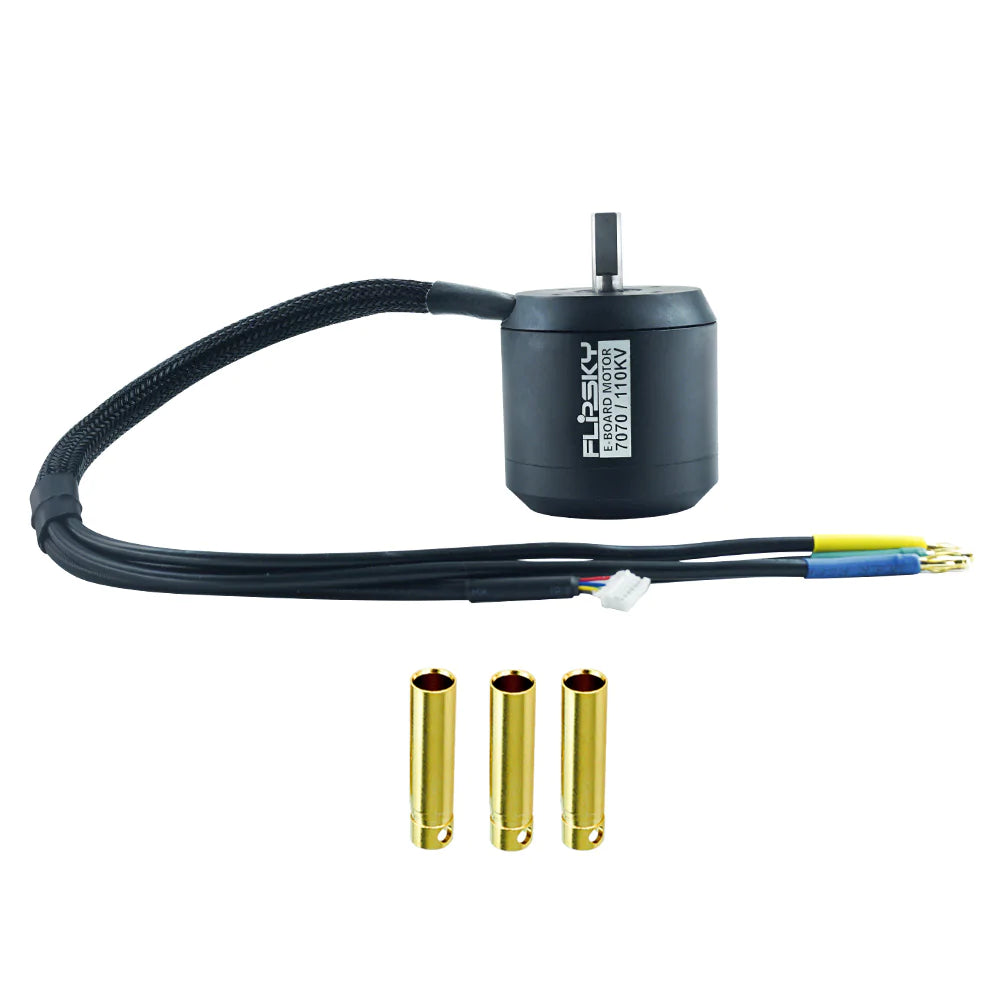

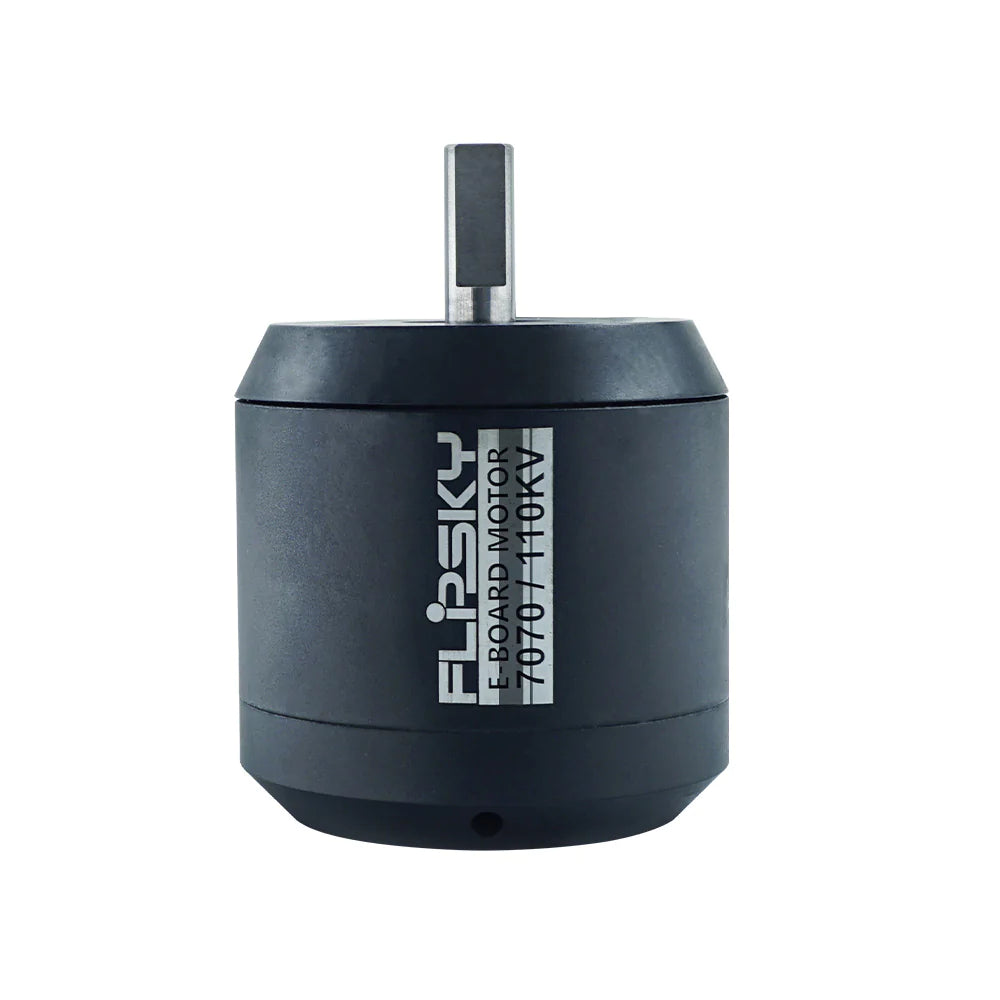

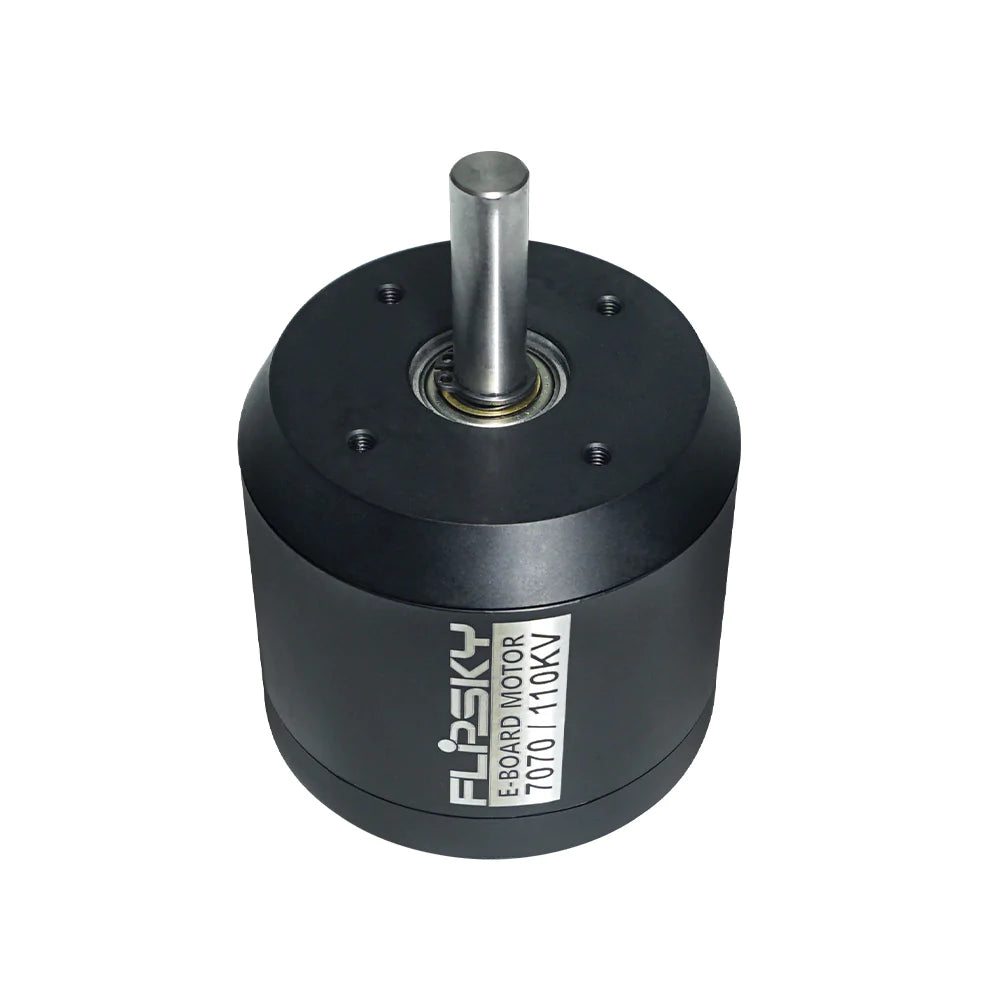

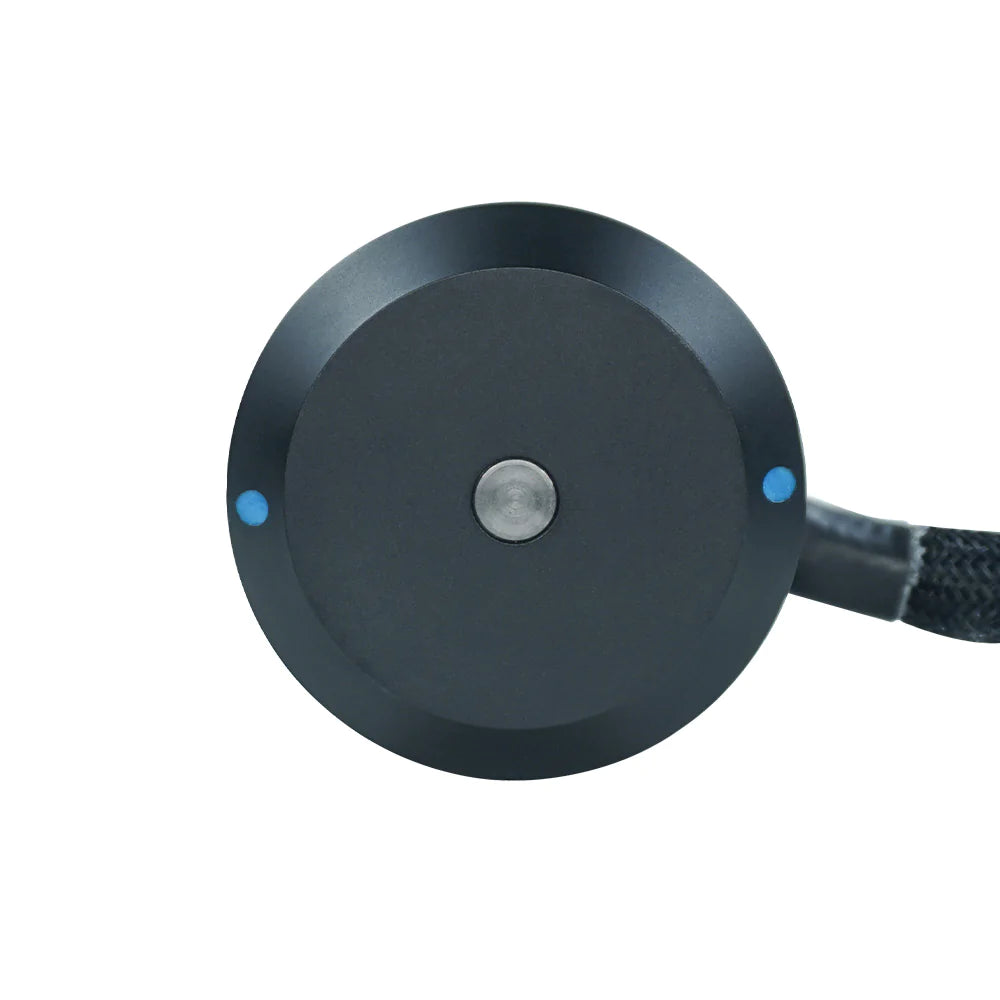

HYPERDRIVE | Motor (7070/110KV)
$169
Don't need the gearbox but want the same motor from our HYPERDRIVE Motor Modules? Problem solved! This 18S-capable 110kv sensored motor is in the sweet spot for easily powering your drivetrain or weapon.
HYPERDRIVE Motor Specs
| RPM/Volt (KV) |
110KV |
| Max Voltage (V) |
75VDC peak (6-18S LiPo) |
| Continuous Current (A) |
70A |
| Max Current (A) |
100A |
| Max Continuous Power (W) |
4200W |
| Torque Constant (KT) |
12.3 oz-in/A (.087 N-m/A) |
| Max Torque (oz-in, N-m) |
1345.3 oz-in (9.5 N-m) |
| Internal Resistance (Ohm) |
0.055Ω (.055mΩ) |
| Motor Structure |
12N/14P |

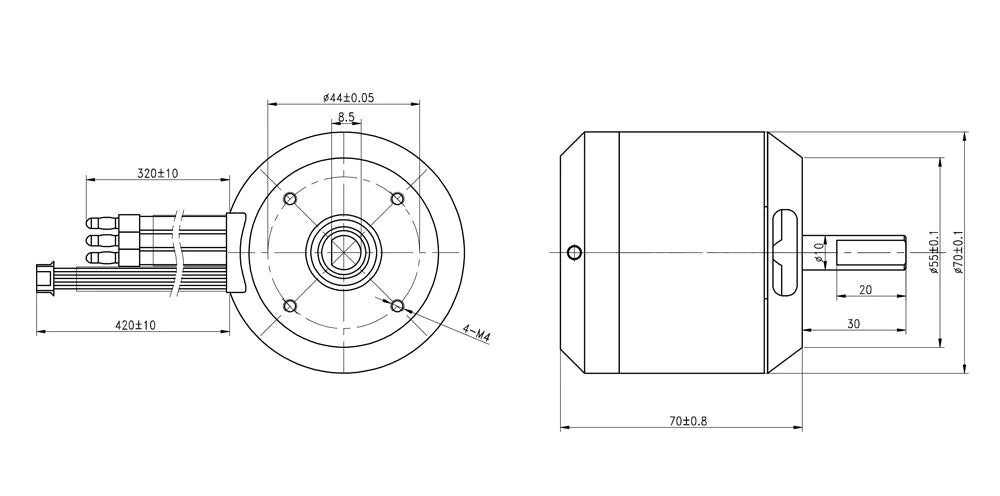

| Motor Dimensions (Diameter x Length, mm) |
70mm OD x 70mm L |
| Shaft Dimensions (Diameter x Length, mm) |
10mm OD x 30mm L, D-Shaft |
| Mass (g, lbs) | 1,008 grams (2.22lbs) |
| Bullet Connector Size |
4mm |
| Sensors |
Yes, Hall Effect + Thermistor |
